M5 Keychain For Two Way Car Alarm Scher Khan Magicar 5 Lcd Keychain Two Way Car Remote Controller Uncut Blade Key Fob Chain

M5 Keychain For Two Way Car Alarm Scher Khan Magicar 5 Lcd Keychain Two Way Car Remote Controller Uncut Blade Key Fob Chain
  • Продавецwww.thestraightway.info
  • Список ценUS $23.19piece
  • Продажная ценаUS $23.19piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,8 (383)

Oписание продукта

Smart Key RFID PKE Car Alarm System Long Push Button Remote Start Stop Engine Password Keyless Entry Rolling Code

Main Function Features Description:
PKE (passive keyless entry)—that’s auto lock or unlock your car door when you walk away from your car for 1-2 meters or approach your car for 1-2 meters.
Arm/disarm (lock/unlock)
Mute arm
Remote trunk release
Car finding help finding
Remote engine start/stop
PKE on/off by remote control
Push button start/stop
Touch password entry
Auto central locking
Code learning method
Power saving & car washing mode
Power off memory
Automatic window close(additional window closer module is required)
Password reset

NOTES: Because our freight forwarder CAN NOT accept any package with battery inside to overseas by air, so we will take out the batteries from remote controls before shipment. Buyer should buy batteries for the 2 remote controls after received products. The battery model is CR2032, very easy to buy it in retail stores or supermarket. Please tell us if you have any further question. We answer most questions in less than 12 hours.

FRIENDLY REMINDER: If your original remote control(s) with a “start chip” inside, you need to buy a extra bypass module. Otherwise you can not use the remote engine start function & push button start function. Any copied keys also can not start your engine if you not install a bypass module. If you are not sure whether there is a “start chip” in your original remote control(s), we suggest you can ask for help from your car vendor or a professional auto technician. if necessary, you can buy the bypass module from follow link:

https://www.aliexpress.com/store/product/Stock-In-USA-Car-Bypass-Module-To-Release-Chip-Key-Immobilizer-OEM-Remote-Key-Inside-Bypass/605688_32666123967.html?spm=2114.12010612.0.0.KAegrn

DSC05106DSC05107DSC05108DSC05109DSC05110DSC05111DSC05112
DSC05113DSC05114DSC05115
DSC05116DSC05105
Button Introduction
Full black laser original plant start button with lamp, high quality double push-button contact hardware switch.
With Tamper-proof password start function. Build-in 40A automobile start subassembly, 100000 times popup test.
After the blue light of start button light up, can follow ignition and other operation.
If have no need to ignite, no need to put on the brakes.
Press start button first time: open ACC switch
Press start button second time: open ON switch
Press start button third time: close all switch
Intelligent induction remote control
Present a couple leather case (wear-resisting and durable real cowhide).
The surface of rubber paint processing.
Ultra thin and super light remote control case
Beautiful and convenient spare key piece

Operating Instructions
1-1
Button , short press one time, PC speaker sings a sound, direction light flash 3 times, door lock and into security status. At the same time close PKE induction system.
Sound alarm settings: Remove security state, open ON switch, long press 3-5 seconds, direction light flash 3 times, horn sings a sound, this is the setting of sound alarm.
Silence alarm settings: Remove security state, open ON switch, long press , direction light flash 3 times, horn not sings, this is the setting of silence alarm.
1-2
Button, short press one times, direction light long light 1 times, door unlocking, remove security state, At the same time open PKE induction system.
Open trunk function: Remove security state, short press button  3 times (or long press 3 seconds), direction light flash 3 times, open trunk.
1-3
Button “P”: In any conditions, short press button”P” 1 times, searching car function.
1-4
Button “P”: In the security state (the remote control is not in the induction area) short press button P 3 times (or long press 3 seconds), system for long-distance remote start car.(When remote start car, car must pull the hand brake and setting neutral position)


DSC05117



DSC05118



DSC05119



DSC05120



DSC05121



DSC05122


FRIENDLY REMINDER: If your car not equipped Car Windows Closer Module or Electric Power Window Kits, you can not use the windows close automatically function when you leave your car. If you are not sure whether your car equipped Car Windows Closer Module or Electric Power Window Kits, we suggest you can ask for help from your car vendor or a professional auto technician. if necessary, you can buy the Car Windows Closer Module or Electric Power Window Kits from the follow hyperlinks.

You can buy Windows Closer Module (DC 12V) from follow link:


You can buy Electric Power Window Kits (DC 12V) from follow link:


Password Keyboard
Factory real object—Strip off import 3M slick paper--- Stuck on the front windshield (The customer feel convenient location)
Feature:
The password keyboard is match with PKE system, the function is to emergency usage. When lose the remote control case and running down the battery, remove anti-theft system through password keyboard.
Having no need to using remote, can setting car anti-theft system by password keyboard. After setting car anti-theft, remove car anti-theft only by password keyboard. Car remote can not operate.

Setting Password
Remove security state, open door, put on foot brake, short press  1 times, direction light flash 1 times, loosen foot brake, password keyboard flash blue light, can setting password. Password number is 6 digits, horn sings 3 times when setting password successfully. (Press button ”C” to delete error password and setting password second times)

Input Password
Please input in order: C+0+#, password keyboard bright out, turn into setting password procedure, only 5 times to try, after 5 errors in a row, try again after 1 hour later.
Product fittings
TOP
Button fittings
High-frequency antenna
Key link line
Keyboard link line
BOTTOM
Door control box
20P link line
Private car plug, CAN-BUS, big 6P wiring harness

Statement
Offer you the authenticity of products. All the pictures are real. No processing through the computer.
Intelligent computer host:
Left:
20P wiring harness connector
Induction antenna connect low frequency
Password keyboard connector
Right
Big 6P wiring harness connector
DIP switch
Start switch connector
Take down dust cover

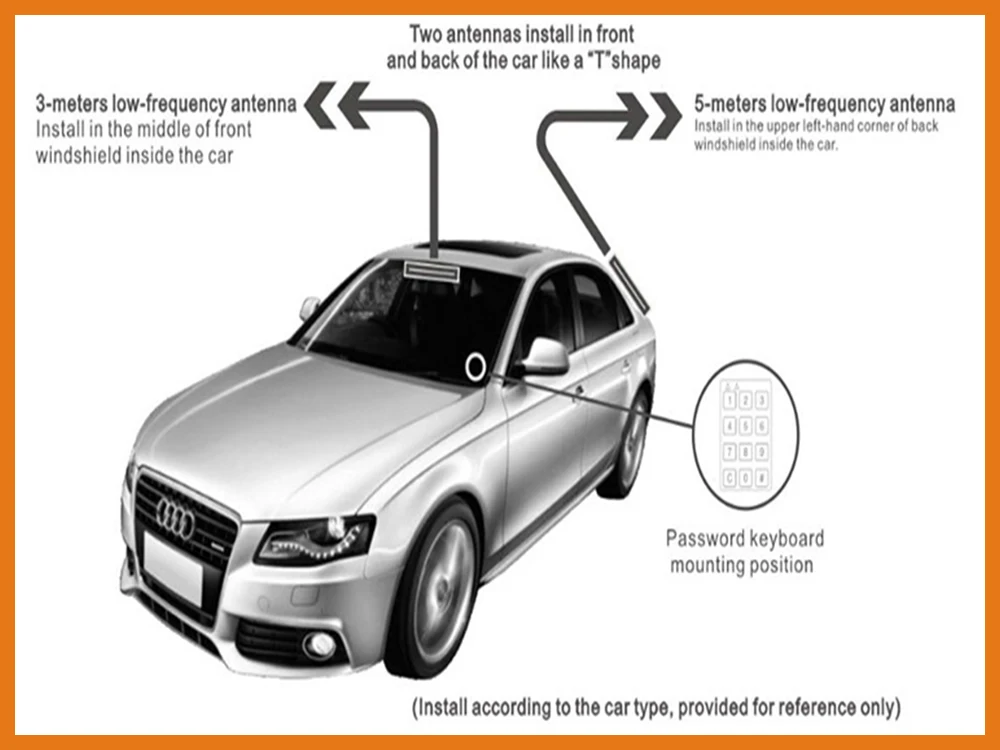

Low Frequency Antenna
5 meter antenna: install top left corner of back windshield
2 meter antenna: install intermediate of front windshield
Two antenna must be install to T shape


DSC05123



DSC05124
